Work Orders 2.0

Overview

The Work Orders module has been redesigned and simplified. This page shows the key changes between 1.0 and 2.0.

To see all the designs, go to https://zpl.io/VK865nE.



Key Navigation / Functional Changes

Type of Change

Field / Subject

Description

Enhancement

Sidepanel Tabs

The new sidepanel has now been split into 2 distinct tabs which include information that was previously stored in row actions in FSE 1.0 (See below for more details).

Enhancement

Work Order Dates

Removed

Workflow Approval & Task Approval

Only Tasks require approval; there is no approval on the WO level. Approval happens in Task Scheduling (previously Scheduling and Dispatch). We have removed those two modules from Work Orders.

Removed

Spare Parts, Consumables, Tools

No option to add Inventory to tasks in MVP. This is on the roadmap to add back into FSE in Q2 and will include integration with actual Inventory to ensure the inventory required is actually on hand.

Removed

Task Dependency

This feature was not fully functioning in FSE 1.0. Will will introduce this feature in a later release.

Active Work Orders

This section describes the changes with accompanying screenshots between FSE 1.0 and FSE 2.0.

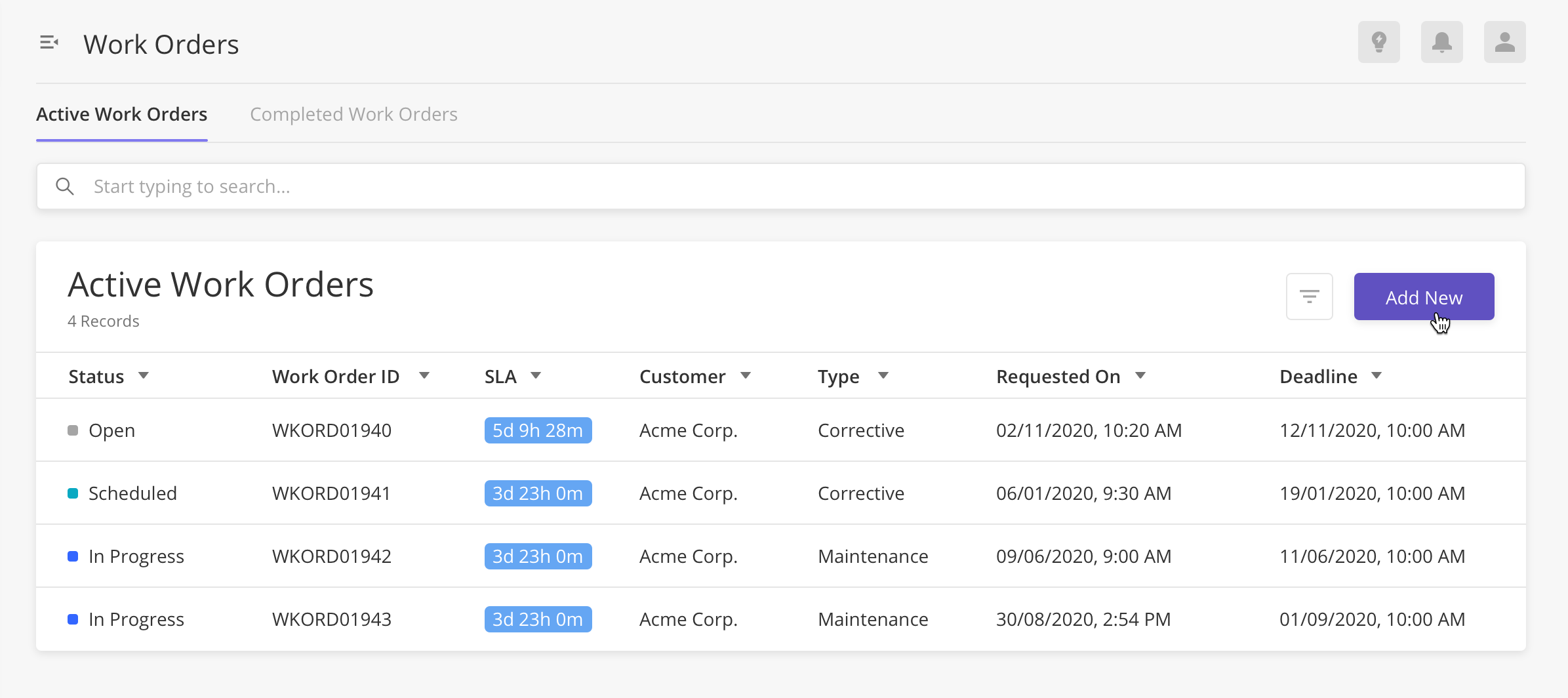

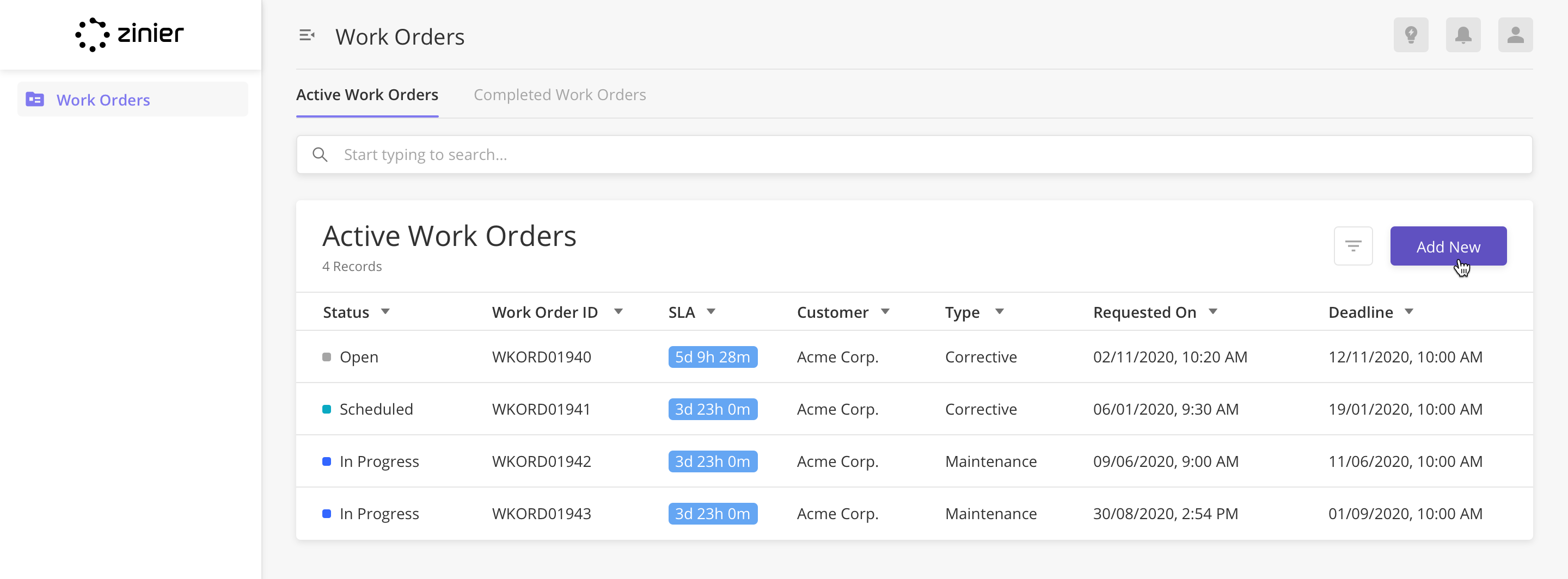

Main Page (Active Work Orders)

The fields in the datagrid were updated as seen below.

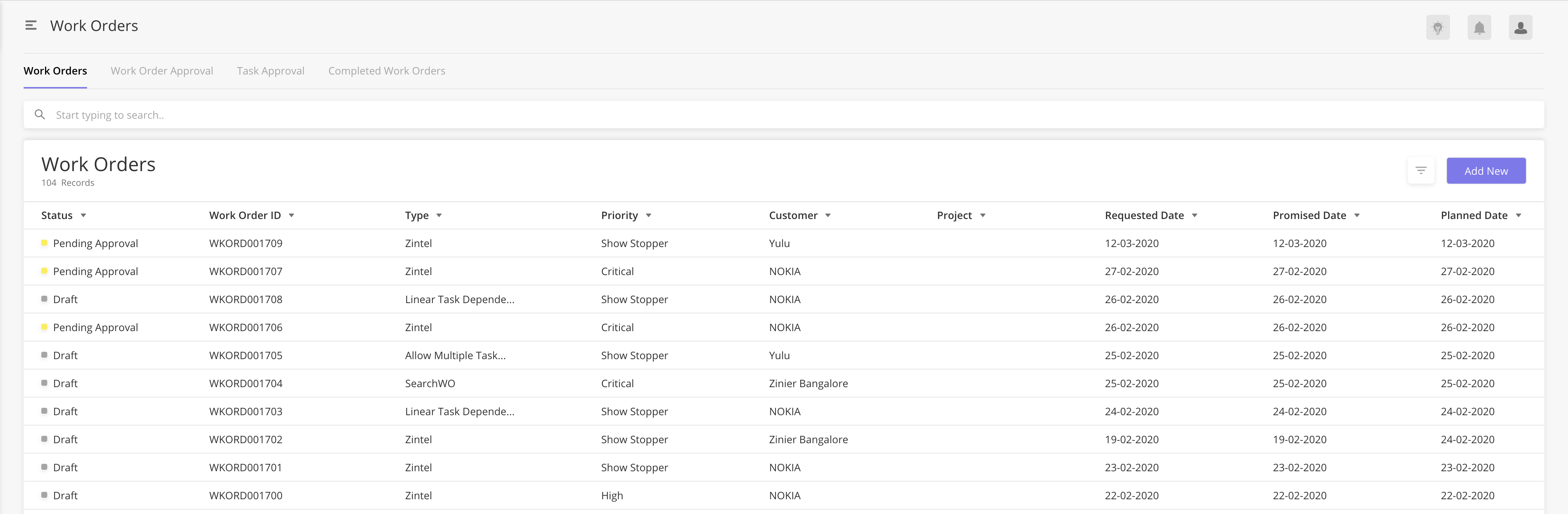

FSE 1.0

FSE 2.0

Work Orders (Side Panel)

Type of Change

Field / Subject

Description

Enhancement

Sidepanel Tabs

The new side panel has now been split into 2 distinct tabs which include information that was previously stored on a single side panel page in FSE 1.0:

  • Work Order Information: Displays work order information.

  • Tasks: Displays tasks associated to the work order.

Enhancement

Simplified dates on WOs

There are only two dates on the WO itself and they now include date and time:

  • Requested On: The date and time the request for the WO was received. It’s pre-populated with the current date and time when creating a new WO but can be changed.

  • Deadline: Auto-filled with the date and time calculated from the SLA and Service Window or manually entered depending on if there’s an SLA associated with the contract.

Enhancement

Publishing Tasks vs. Work Orders

Work Orders no longer need to be published and instead are simply saved. Instead, the save as draft and publish functionality has been moved to the Tasks within a Work Order. This enables you to publish Tasks individually, which sends the task to the Task Scheduling module. You can also add Tasks to Work Orders at a later date if needed.

Enhancement

Effect of Contracts on WOs and how they impact other fields

In FSE 1.0, users select the Contract first which then pre-fills the Customer. Contracts and SLAs were required, leading to less overall flexibility.

In FSE 2.0, SLAs are optional on the Contract level. There’s also been a change in UX when creating WOs where Customer is selected first and the Customer may or may not have a contract associated with their account.

When creating a WO, a user first selects a Customer. This Customer may have four different Contract scenarios that now impact related fields.

  • No Contract

    • Contract: Empty, deactivated

    • Service Window: Activated and required so the tasks get scheduled within the correct operating hours.

    • SLA Resolution Time: Empty, deactivated

    • Deadline: Activated and optional

  • 1 Contract with SLA

    • Contract: Auto-filled with the Contract name

    • Service Window: Deactivated, auto-filled with the Service Window set in the Contract, cannot be edited

    • SLA Resolution Time: Deactivated, auto-filled with the resolution time from the SLA set in the Contract, cannot be edited

    • Deadline: Auto-filled with the date and time calculated from the SLA and Service Window

  • 1 Contract without SLA

    • Contract: Auto-filled with the Contract name

    • Service Window: Deactivated, auto-filled with the Service Window set in the Contract, cannot be edited

    • SLA Resolution Time: Empty, deactivated

    • Deadline: Activated and optional

  • Many Contracts

    • Contract: Dropdown list for the user to select the correct contract for this Work Order

    • Service Window: Deactivated, auto-filled with the Service Window set in the Contract, cannot be edited

    • SLA Resolution Time: Dependent on whether or not there’s an SLA associated with the contract. See above for behavior

    • Deadline: Dependent on whether or not there’s an SLA associated with the contract. See above for behavior

Enhancement

Priority

FSE 1.0: Independent Priority fields on both the WO and Task. WOs could be given a priority which determined the SLA, but a Task could have its own priority that was used only for scheduling purposes; it had no effect on the SLA clock.

FSE 2.0: Priority is now ONLY on the Work Order level and not on the Task, which inherits the priority of the Work Order.

*Note that this could change in later versions depending on feedback from Solutions, Sales, and Customers.

Enhancement

Work Order Statuses

Work Order Statuses have changed.

  • Open

  • Scheduled

  • In Progress

  • Completed

Removed

Spare Parts, Consumables, Tools

No option to add Inventory to tasks in MVP. This is on the roadmap to add back into FSE in Q2 and will include integration with actual Inventory to ensure the inventory required is actually on hand.

Removed

Escalation Hierarchy

This feature was not fully functioning in FSE 1.0. We will introduce this feature in a later release.

FSE 1.0

FSE 2.0

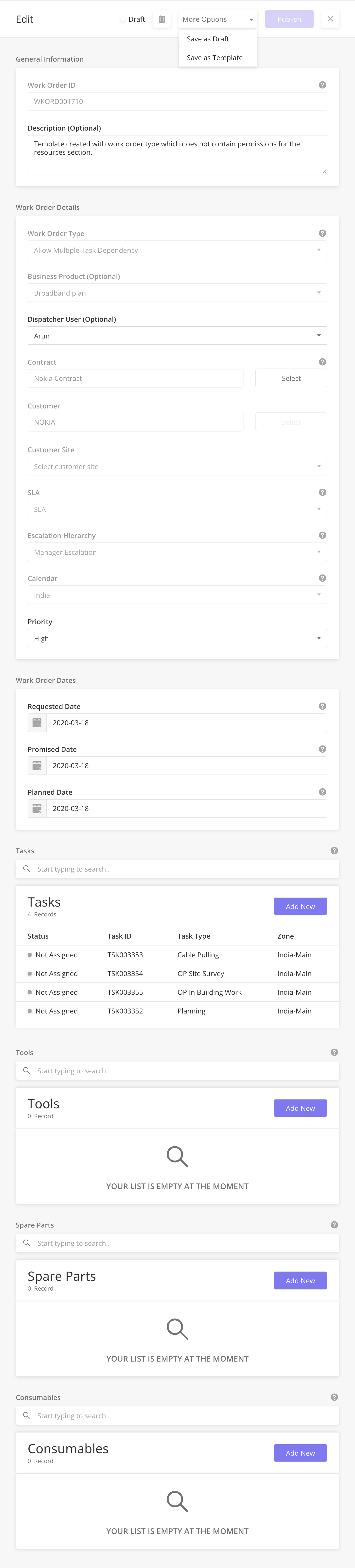

Old Work Orders Sidepanel

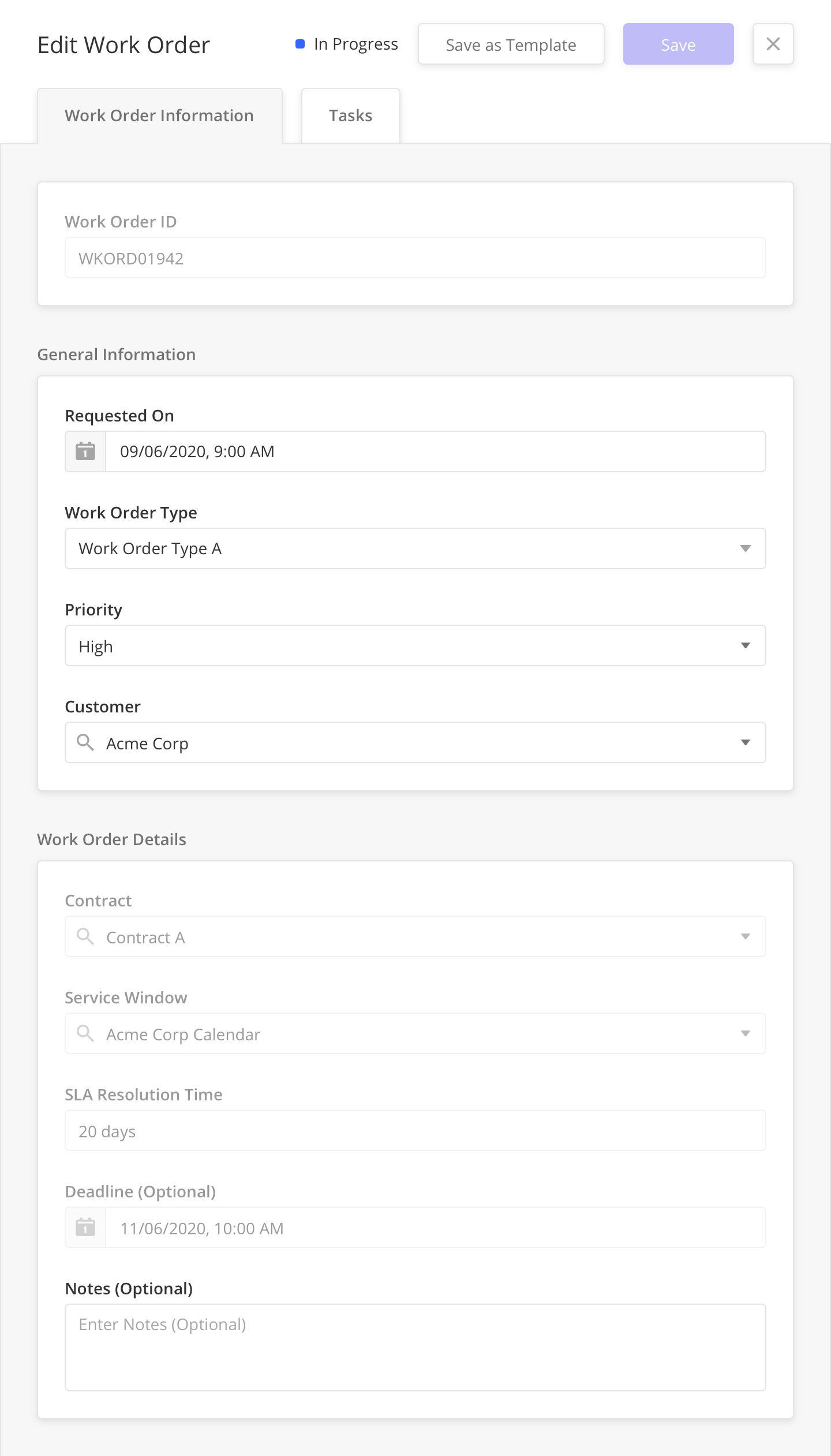

Work Orders Information Tab

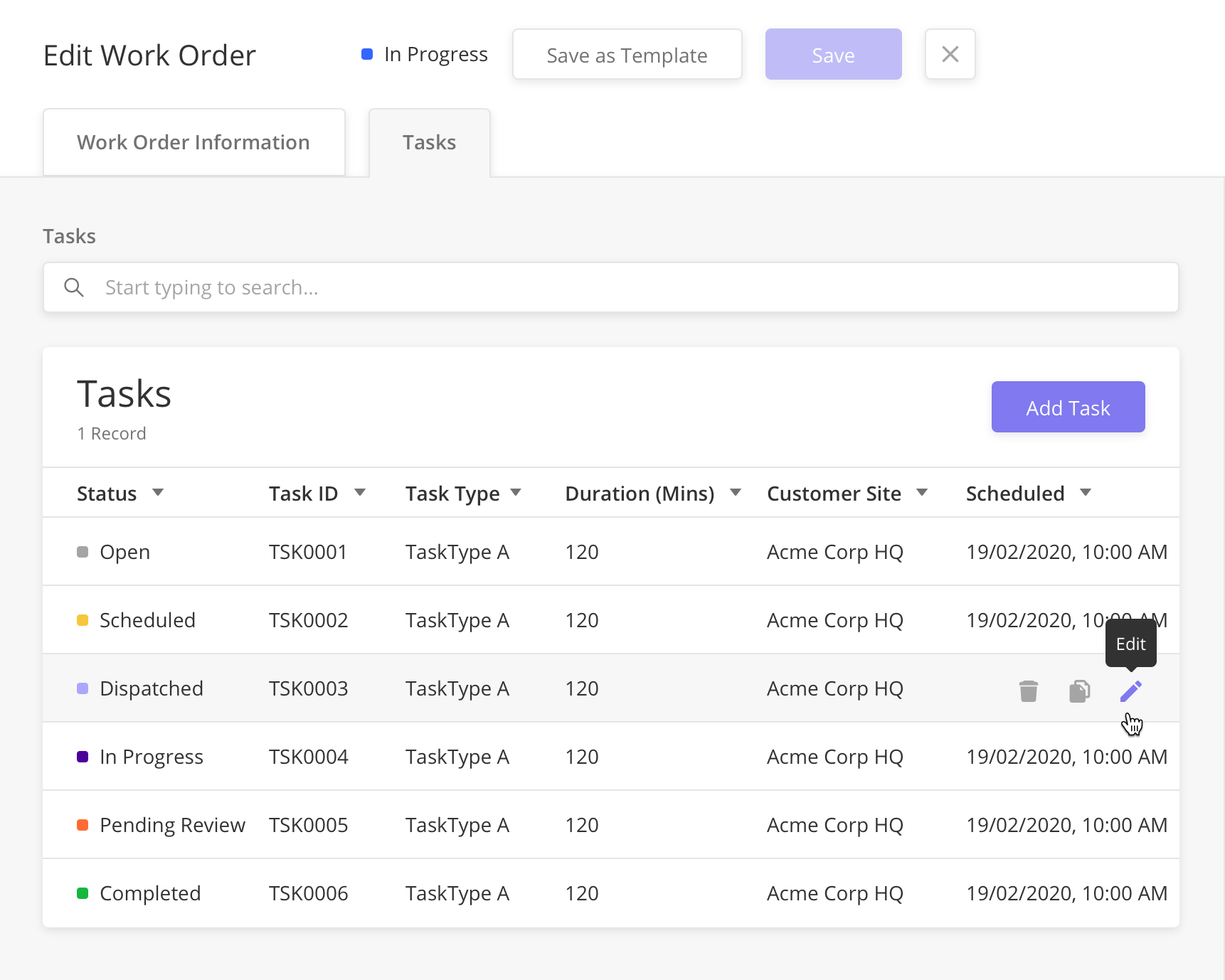

Tasks Tab

Add Tasks to Work Orders (Side Panel)

Type of Change

Field / Subject

Description

Enhancement

Publishing Tasks vs. Work Orders

Work Orders no longer need to be published and instead are simply saved. Instead, the save as draft and publish functionality has been moved to the Tasks within a Work Order. This enables you to publish Tasks individually, which sends the task to the Task Scheduling module. You can also add Tasks to Work Orders at a later date if needed.

Enhancement

Notes

Now you can capture Task-specific notes in this new field and pass the information on to Technicians. This field will get passed to the dispatcher when scheduling a task and then to the Technician if this field is enabled in the Mobile Workflow.

Enhancement

Dates

Dates have been simplified. The Scheduled Start Date (Optional) is a field that gets passed to the Dispatcher when scheduling a task. It can be edited here and also in Scheduling and Dispatch.

Enhancement

Customer Site and Info

We are now displaying the customer address/map and other Customer details in this side panel. This gets pre-populated based on which customer site you select in the Work Orders Side Panel.

Removed

Task Dependency

This feature was not fully functioning in FSE 1.0. We will introduce this feature in a later release.

Removed

Link Task to an Asset

We have removed the ability to add an Asset to Tasks for purposes of corrective or preventive maintenance. This is also on the Q2 roadmap along with Asset Logs to show the Task history of work performed on the Asset.

Removed

Zone

This was a holder-over from the Singtel demo and has been removed.

Removed

Deploy task when work order status is…

As the “save as draft” and “publish” functionality has been moved from Work Orders to the Task level, this functionality is no longer required.

FSE 1.0

FSE 2.0

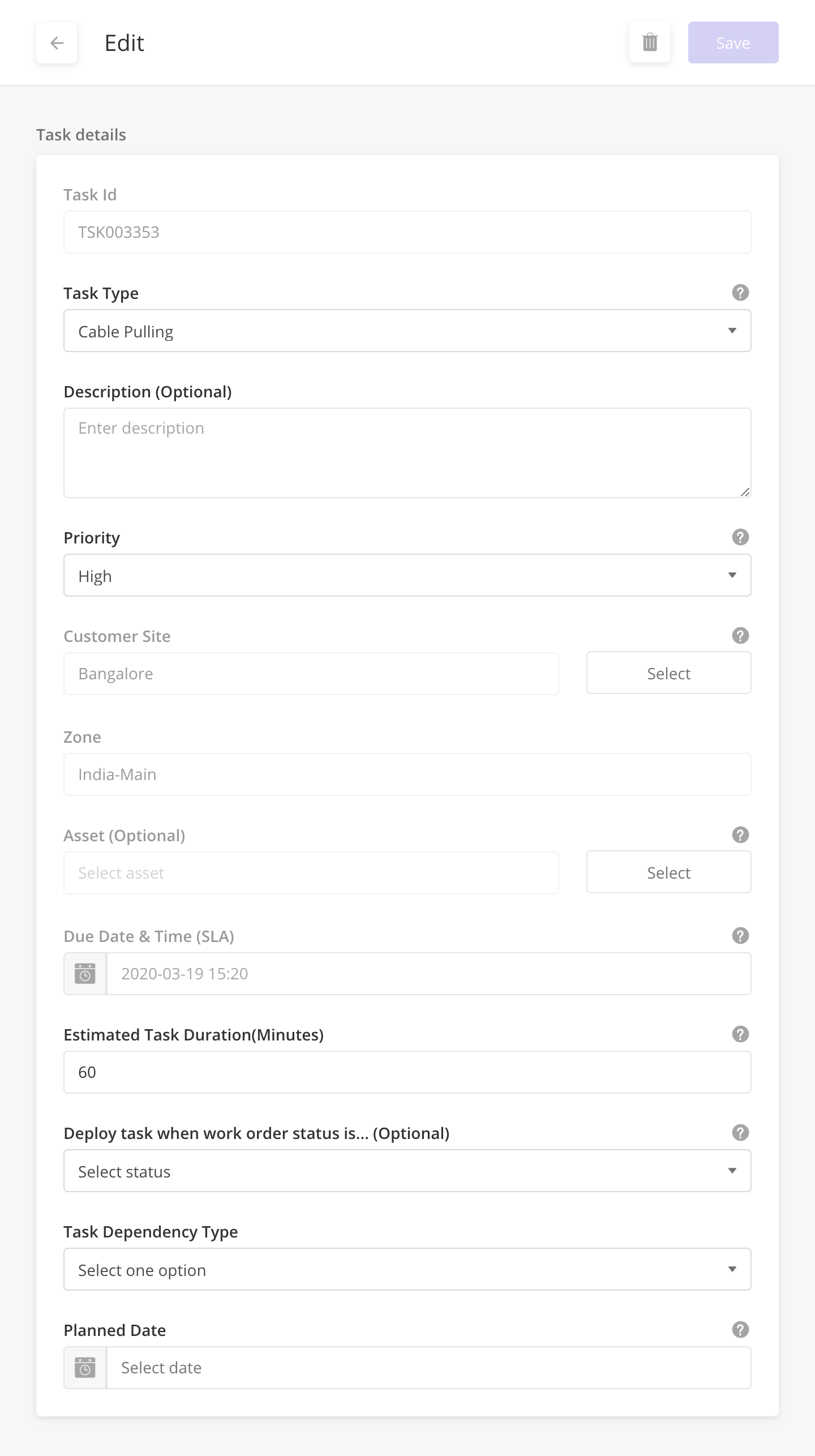

Old Tasks Sidepanel

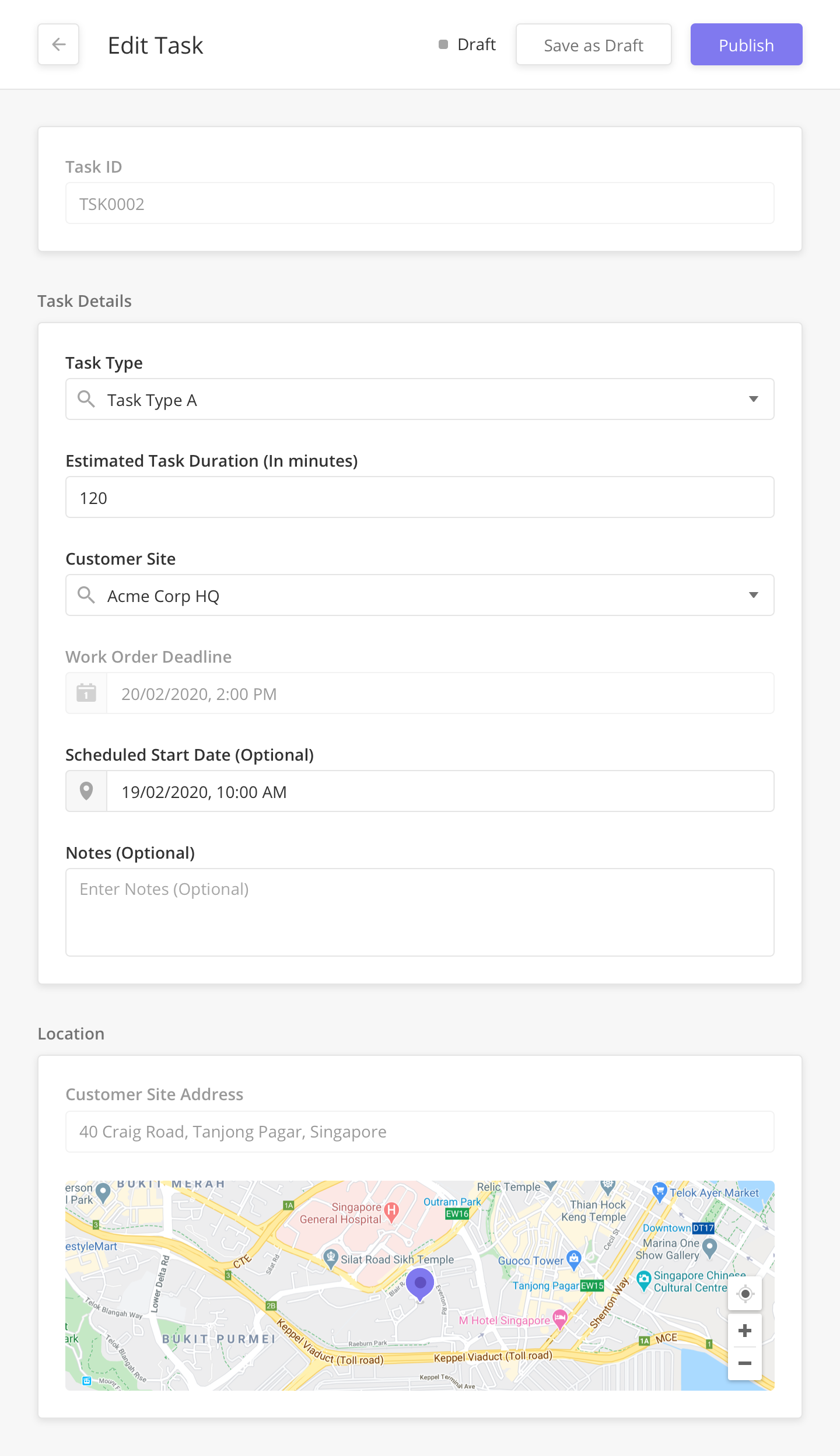

New Tasks Sidepanel

Roadmap / Future Enhancements

Release

Feature

Description

20.3

Spare Parts, Consumables, Tools

We will be adding these back to FSE in Q2. They will each show up as a separate tab in the WO side panel.

20.4

Task Dependency

We will introduce a fully-functional version of Task Dependency in this release.

TBD

Assign Task to an Asset

Ability to link Tasks to an Asset for purposes of corrective or preventive maintenance.

TBD

Escalation Hierarchy

This feature was not fully functional in FSE 1.0. We will look to add this feature back in a future release.
