ISAC 3.7.4

Web

Grid Layout and Row Component

Introducing new web components in Main Pages to allow users to configure an horizontal scrolling experience available for complex User interfaces with multiple sub-components on it.

Enabling Solution Developers to add components like drop-downs and buttons to a Main Page so web users can interact more with the page

JSON

{
  "hidden": false,
  "children": [{
      "children": [{
          "actionOnChange": [],
          "options": "",
          "title": "@lang.['tt989','Task Type']",
          "type": "dropdown",
          "value": "",
          "placeHolder": "@lang.['so','Select option']"
        }
      ]
    },{
      "children": [{
          "buttonType": "secondary",
          "actionOnClick": [],
          "type": "button",
          "title": "@lang.['aap','Add Additional Points']"
        }
      ]
    }
  ],
  "type": "row"
},{
  "children": [{
      "size": "ML",
      "type": "dataGrid",
      "jsonDef": {},
      "widgetType": "compWidget"
    }
  ],
  "type": "gridLayout"
}

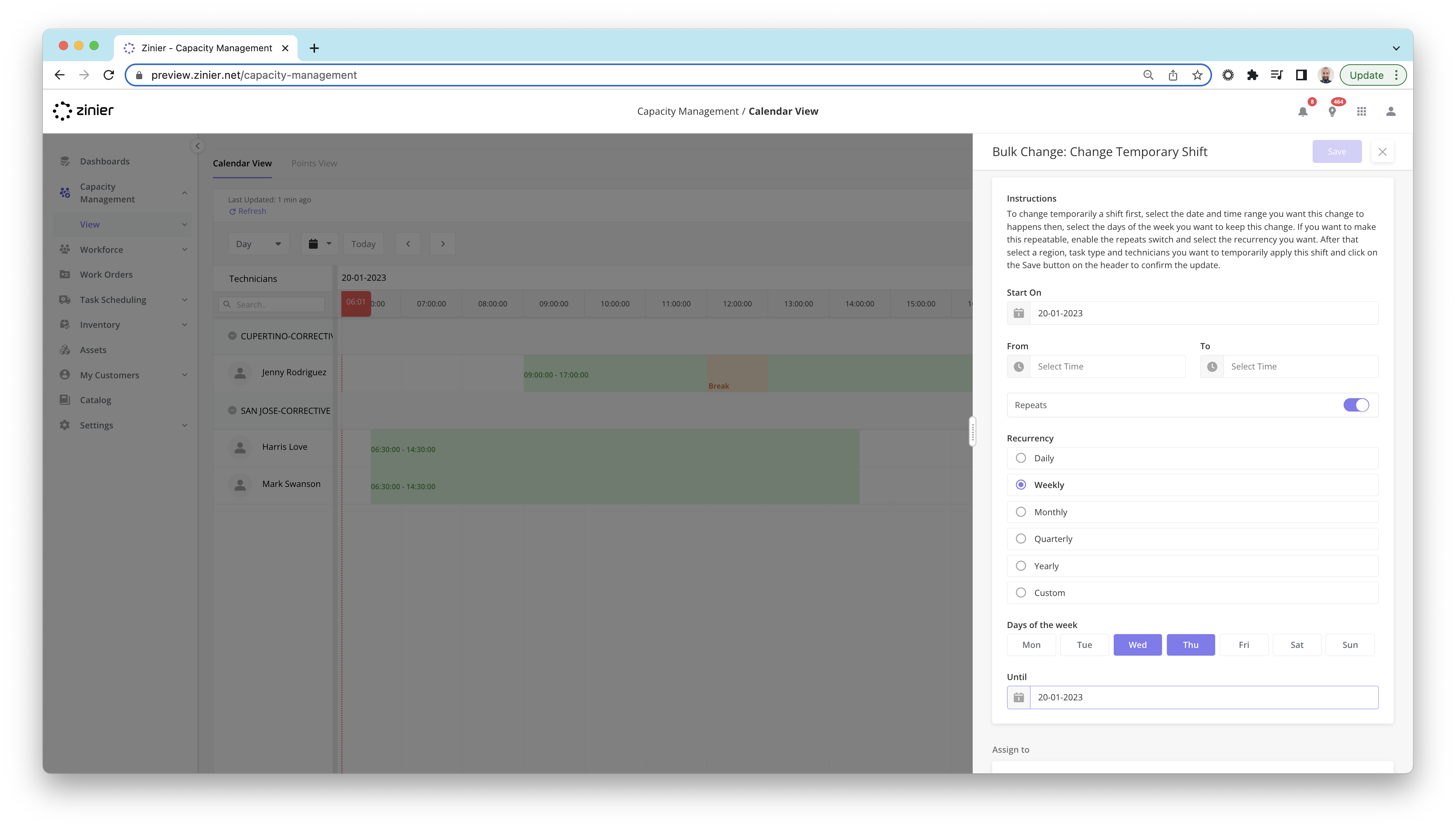

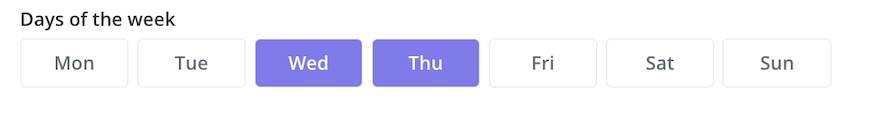

New Multi-Select component

This new component allows a Solution Developer to present a set of options for a web user to select multiple times. i.e: Days of the week

JSON

{
  "options": [{
    "label": "Mon",
    "value": "mondayWS"
  },{
    "label": "Tue",
    "value": "tuesdayWS"
  },{
    "label": "Wed",
    "value": "wednesdayWS"
  },{
    "label": "Thu",
    "value": "thursdayWS"
  },{
    "label": "Fri",
    "value": "fridayWS"
  },{
    "label": "Sat",
    "value": "saturdayWS"
  },{
    "label": "Sun",
    "value": "sundayWS"
  }
  ],
  "type": "multiSelectList",
  "title": "@lang.['dotw','Days of the week']",
  "value":""
}

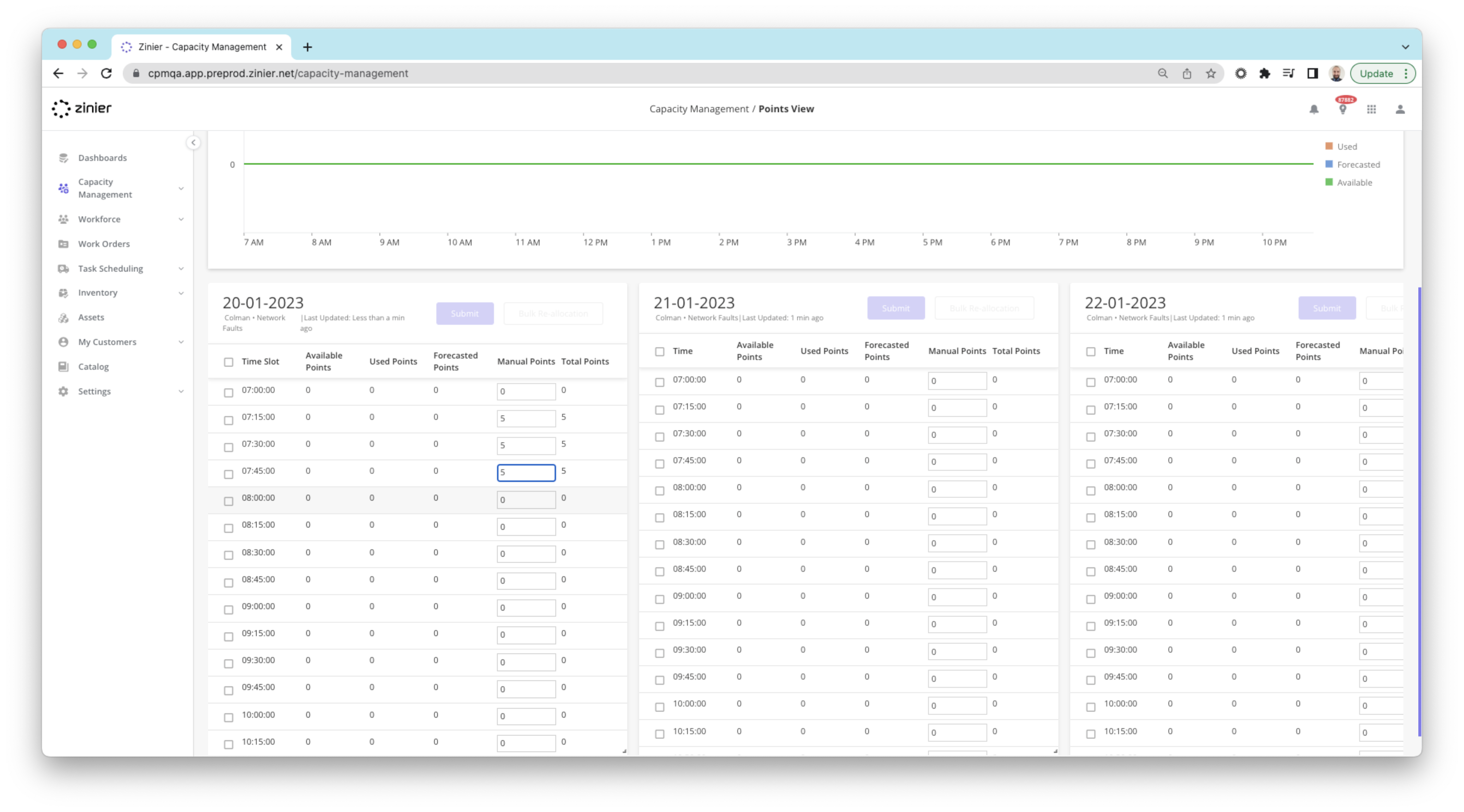

Datagrind Text Inline Editing

Enables the capability for Solution Developers to configure columns in a datagrid that will allow Web Users to edit values inline.

JSON

{
  "tableHeader": [
    {
      "name": "@lang.['ts6','Time Slot']",
      "options": {
        "showLabel": true
      },
      "key": "time",
      "primaryKey": true
    },
    {
      "name": "@lang.['mps','Manual Points']",
      "options": {
        "actionOnChange": [
          "@actions.isValidPoint"
        ],
        "editable": true,
        "showLabel": true
      },
      "key": "manualCount"
    },
    {
      "name": "@lang.['tps','Total Points']",
      "options": {
        "showLabel": true
      },
      "key": "total"
    }
  ],
  "dataToBeSent": {},
  "header": {
    "subHeaderText": "@pageContext.subtitleSubHeader",
    "headerText": "@pageContext.subtitleOneHeader",
    "children": []
  },
  "isMultiColumn": true,
  "actions": []
}

Server

Create bookmarks on a PDF File

Introducing a new capability for a Solution Developer to be able to configure a PDF file node to create specific bookmarks in the file, to provide indexing to specific sections of the same.

More details: ZPS-2570

https://z2-nvirginia-edison.s3.amazonaws.com/PDFAutomationFile_UP5ZIA6XI3.pdf

JSON

{
  "longText": "<html>\n  <body>\n    <img src=\"https://s3.amazonaws.com/z2-nvirginia-einstein/gcpsd/razmanothmanziniercom/1597061772.jpg\" />\n    <h1>First Header</h1>\n    <h2>Second Header</h2>\n    <h3>Third Header</h3>\n    <h4>Fourth Header</h4>\n    <img src=\"https://z2-nvirginia-hawking.s3.amazonaws.com/1601462355809Screenshot20200915at3.34.32PM.png\" alt=\"BookMark1\" />\n    <br>\n    <img src=\"https://z2-nvirginia-hawking.s3.amazonaws.com/1601462601913Screenshot_20200520133923_Zinier_dev.jpg\" alt=\"BookMark2\" />\n    <br>\n    <img src=\"https://z2-nvirginia-hawking.s3.amazonaws.com/1660898046346Screenshot20220801at2.22.34PM.png\" alt=\"BookMark3\" />\n    <br>\n    <img src=\"https://z2-nvirginia-hawking.s3.amazonaws.com/160146265674420200116258138443891779493603.jpeg\" alt=\"BookMark4\" />\n    <br>\n    <img src=\"https://z2-nvirginia-hawking.s3.amazonaws.com/1601462355809Screenshot20200915at3.34.32PM.png\" alt=\"BookMark5\" />\n    <br>\n    <img src=\"https://z2-nvirginia-hawking.s3.amazonaws.com/1601462601913Screenshot_20200520133923_Zinier_dev.jpg\" alt=\"BookMark6\" />\n    <br>\n    <img src=\"https://z2-nvirginia-hawking.s3.amazonaws.com/1660898046346Screenshot20220801at2.22.34PM.png\" alt=\"BookMark7\" />\n    <br>\n    <img src=\"https://z2-nvirginia-hawking.s3.amazonaws.com/1660898046346Screenshot20220801at2.22.34PM.png\" alt=\"BookMark8\" />\n    <br>\n    <img src=\"https://z2-nvirginia-hawking.s3.amazonaws.com/1660898046346Screenshot20220801at2.22.34PM.png\" alt=\"BookMark9\" />\n    <br>\n    <img src=\"https://z2-nvirginia-hawking.s3.amazonaws.com/1660898046346Screenshot20220801at2.22.34PM.png\" alt=\"BookMark10\" />\n    <br>\n    <img src=\"https://z2-nvirginia-hawking.s3.amazonaws.com/1660898046346Screenshot20220801at2.22.34PM.png\" alt=\"BookMark11\" />\n    <br>\n  </body>\n</html>",
  "pdfFile": "https://z2-nvirginia-hawking.s3.amazonaws.com/PDFAutomationFile_MHTB807ZO0.pdf",
  "fileSize": 1655443,
  "shortText": "Test",
  "contextType": "output",
  "__status": true
}

Related features

New Optimized Insert

Introducing a new set of keys to enable Solution Developers to use optimized Upsert nodes.

upsertNewFlow: This is new a flow - developed for optimization and compare with older flow, if we don’t need response in outputVar, we can used this flag with true.
bulkEventBatch: to specify the batch size of the bulk operation the default value is 100. how many records in a single db operation.
bulkEventCall: if we set to true then it will perform multiple records upsert in single db operation otherwise we do record by record.

More Details: ZPS-2695

JSON

 "modelDkLHQ": {
  "connectors": [
      {
        "exitPortType": "NextStep",
        "nodeId": "processWz8hO"
      }
    ],
    "multirecord": true,
    "upsertNewFlow": true,
    "bulkEventBatchSize": 999,
    "bulkEventCall": true,
    "description": "Provide some description for your model node",
    "inputVarMap": {
      "insertdata": "data"
    },
    "nodeType": "MODEL",
    "modelName": "edtest2",
    "name": "modelDkLHQ",
    "id": "modelDkLHQ",
    "outputVarMap": {
      "data": "data"
    },
    "operation": 4
  },

選択したルートページが見つかりません。

Fixed Bugs

Summary	T	Assignee	Epic Link	Project
Data cannot be retrieved due to an unexpected error. View these issues in Jira
